MONITOR STEAM ENGINE DOUBLED UP
Julius de Waal

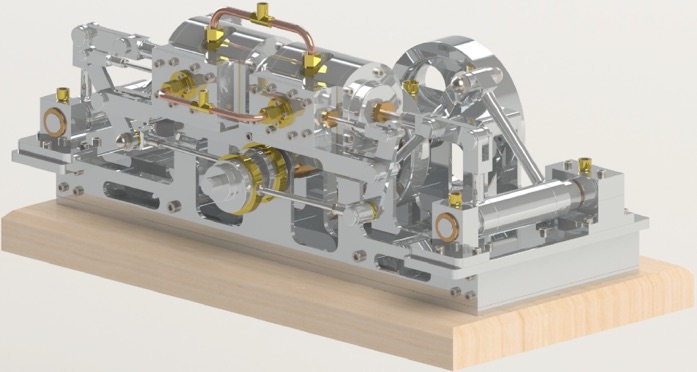

Shortly after starting the serial by Vince Cutajar on building the USS Monitor engine, MEWS was delighted to receive these drawings from Julius de Waal. They are for a double sized version. As with the smaller casting-free version, it can be made from bar stock, albeit at a much higher swarf production rate. On a base 760mm (nearly 30”) long, this really is a substantial piece of enngineering. Click on drawings to download - for personal use only.
