NOVEL TWO CYLINDER VERTICAL ENGINE

By Julius de Waal

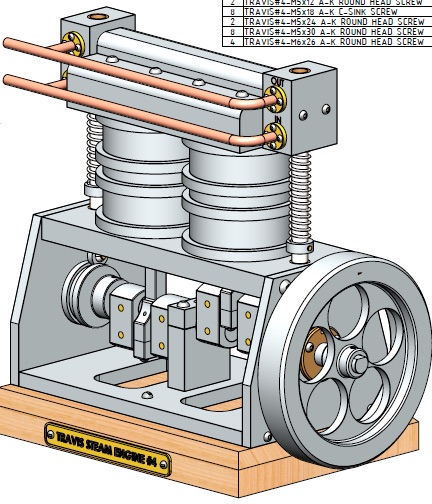

This interesting and unusual two cylinder vertical steam engine was designed by Thomas C Travis and is revisited by Julius here in metric and to a larger scale to give a 24mm dia bore size.

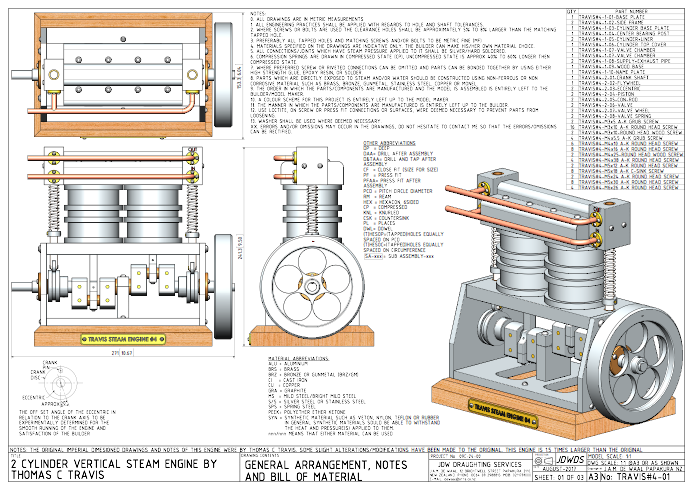

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
