THWAITES & CARBUTT

ROLLING MILL ENGINE

Part 2/2 by Julius de Waal

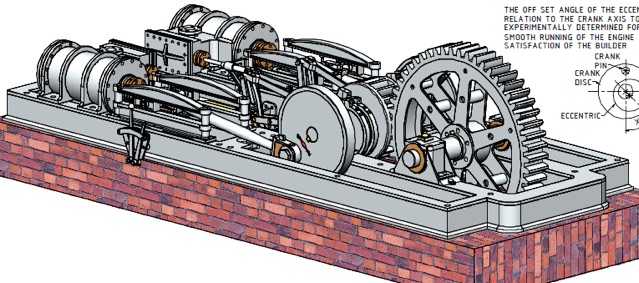

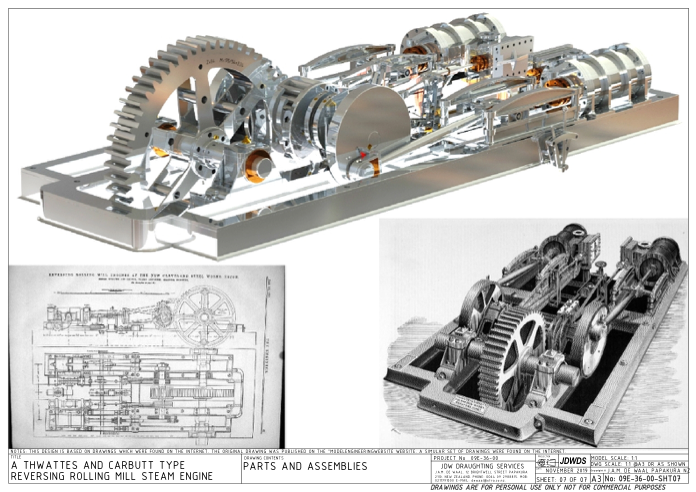

Recently, MEWS published details of the original reversing rolling mill engines built by Thwaites & Carbutt of Bradford. Now Julius has turned the original engraving and published details into a set of model drawings.

Part one here.

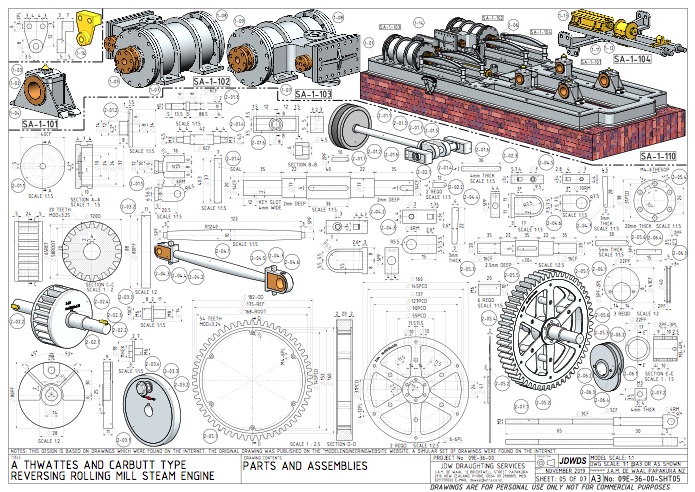

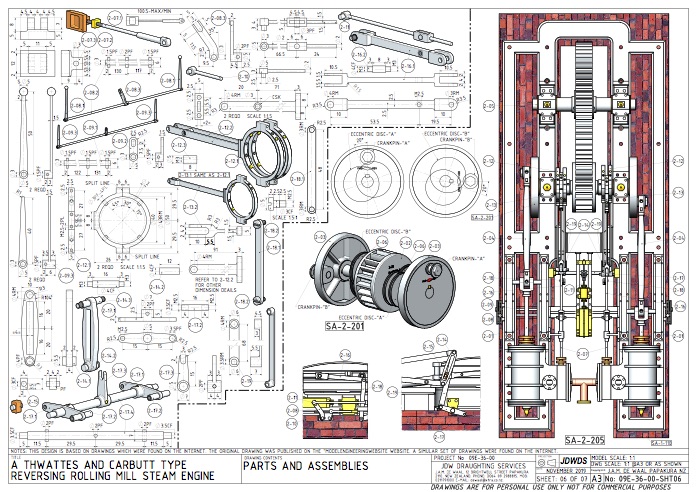

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
