SOLID FUEL SCOTCH MARINE BOILER

By Julius de Waal

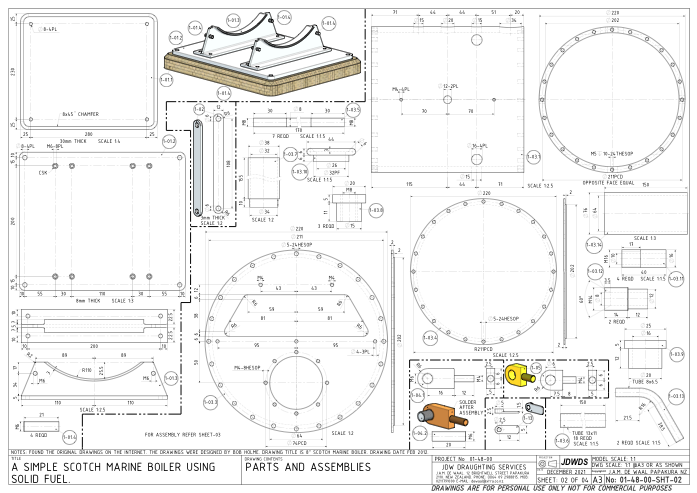

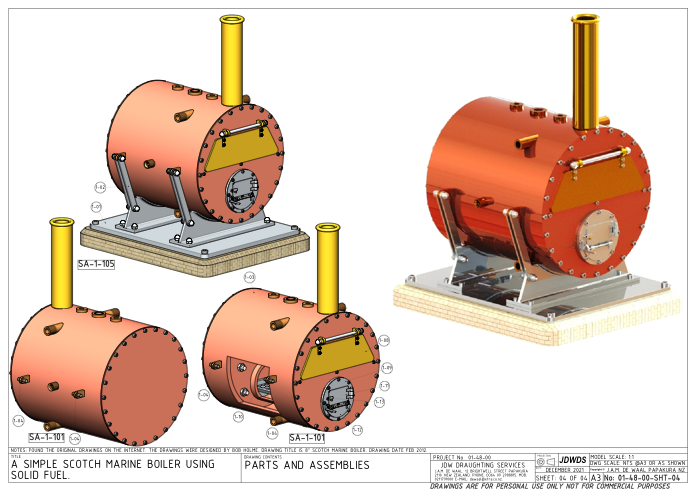

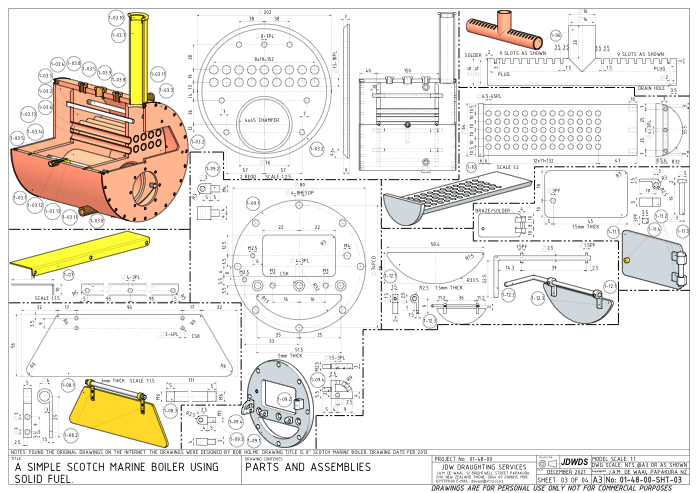

Julius’ drawings for a solid fuel Scotch marine type boiler


Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as saved downloads.


Before starting work on a boiler, always check the design etc with a boiler inspector.


Please let the editor know if you are building one of these or other projects to Julius’ designs.
