CAD DRAWINGS FOR THE TRUNCH TROJAN

By Julius de Waal

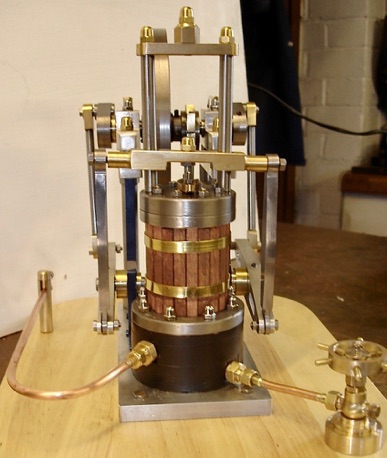

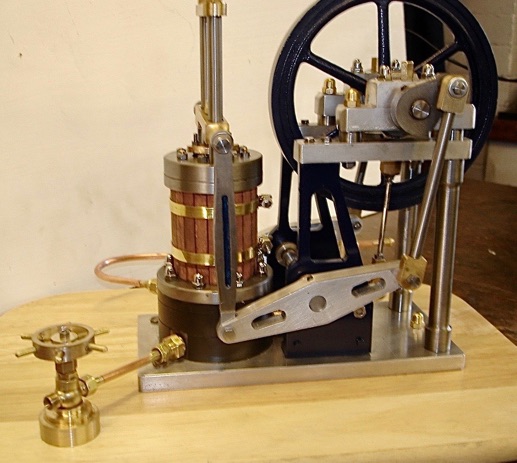

Julius revisits the Trunch Trojan beam engine by Bob Middleton with a set of CAD drawings. The original description starts here. A metric version by Julius can be found here.

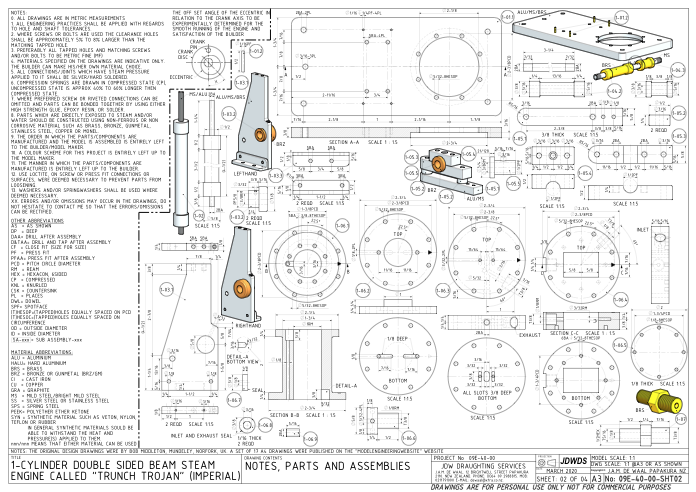

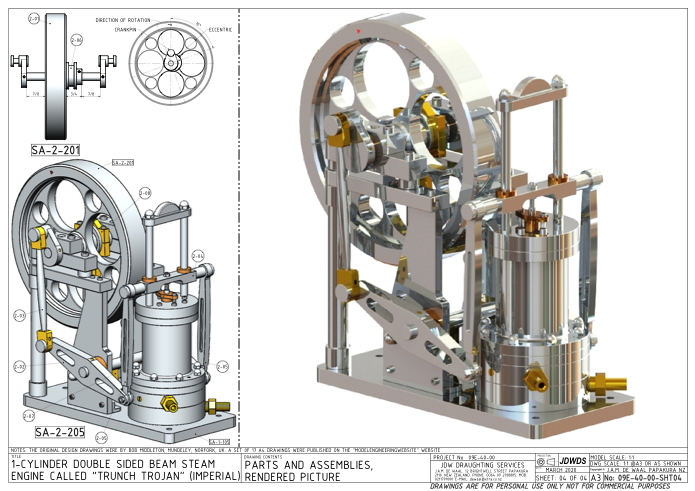

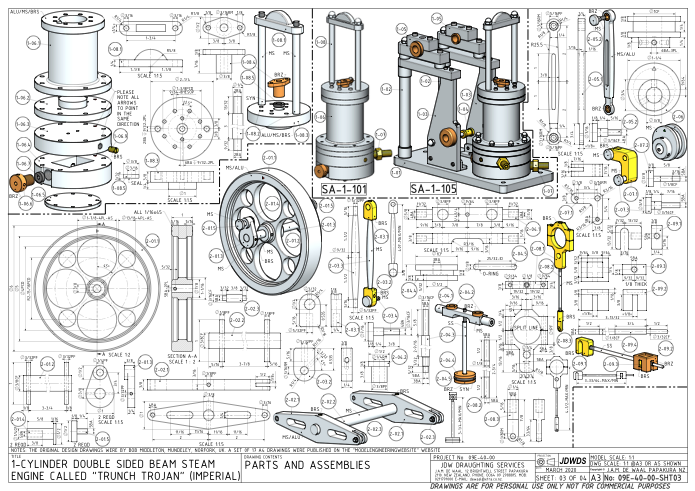

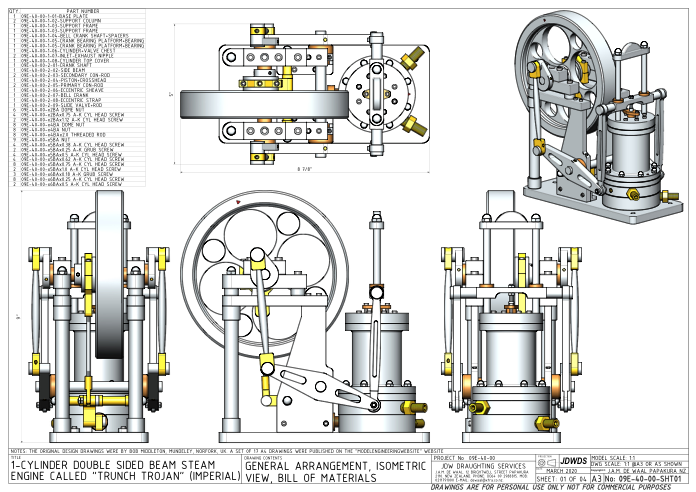

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
