THE TRUNCH TROJAN ENGINE IN METRIC

By Julius de Waal

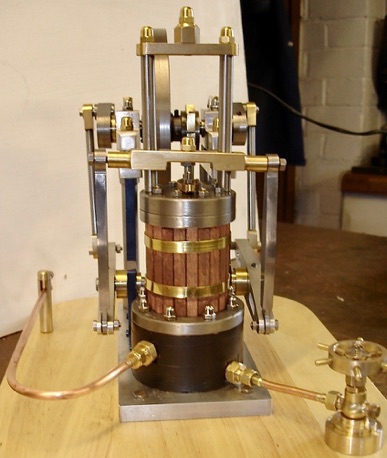

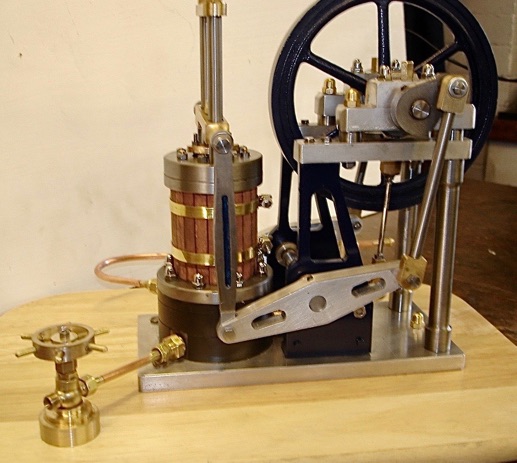

Julius revisits the Trunch Trojan beam engine by Bob Middleton in metric. The original description starts here. A CAD version by Julius in imperial dimensions can be found here.

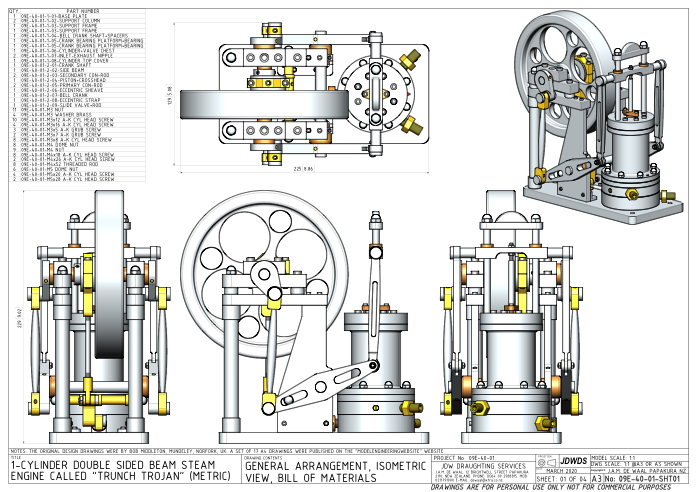

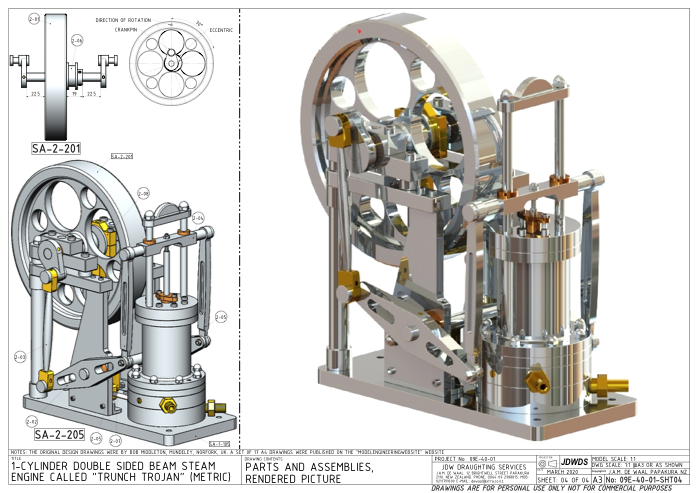

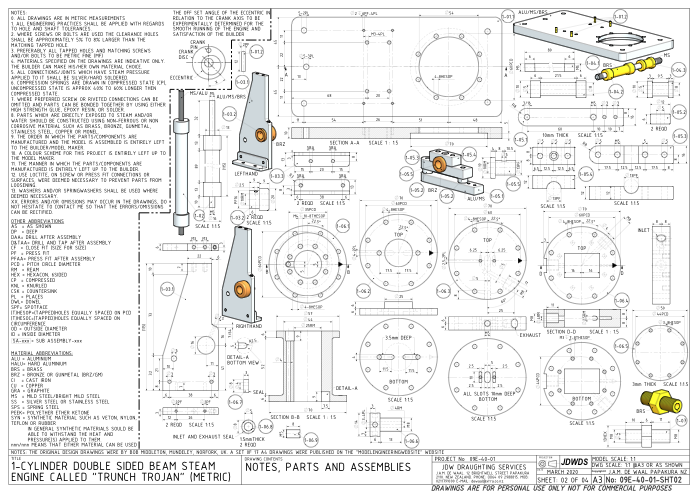

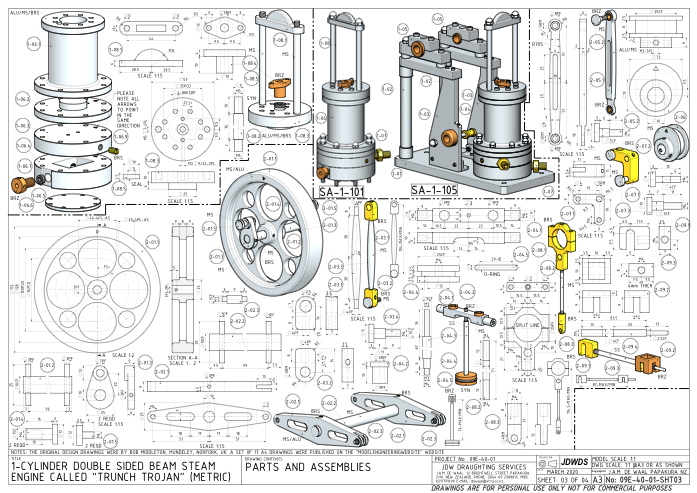

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
