WESTBURY  PADDLE STEAMER ENGINE
By Rafel Ayensa


Anthony Mount

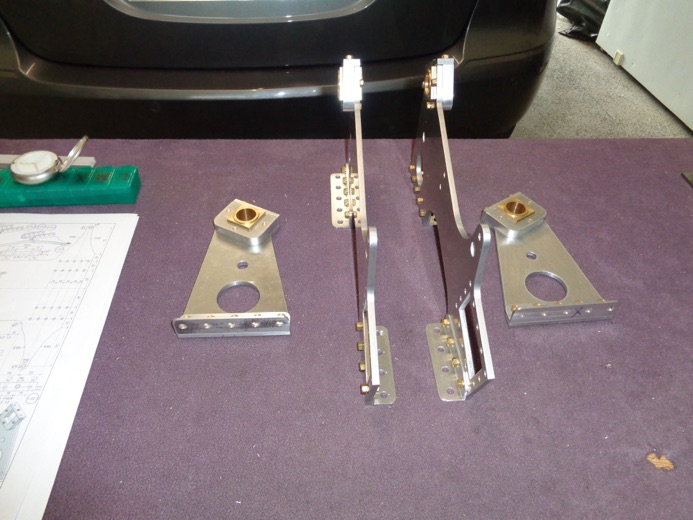

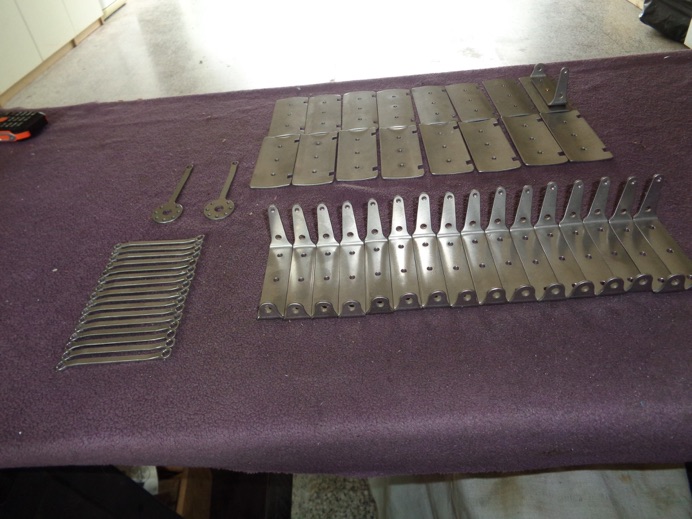

Latest model completed by Rafel to Julius de Waal’s drawings; one of many completed to fine quality standards.

Back in the 1950s the great Edgar T Westbury produced drawings for a diagonal paddle steamer twin cylinder engine with Stephenson’s valve gear coupled to the paddle wheels. Julius re-visited the design in metric and to a larger scale. Designed for fabrication rather than castings.

Drawings available here.

https://www.sarikhobbies.com/model-engineer-builder/
