NOVEL TWIN-CYLINDER ROCKING STEAM ENGINE

By Julius de Waal

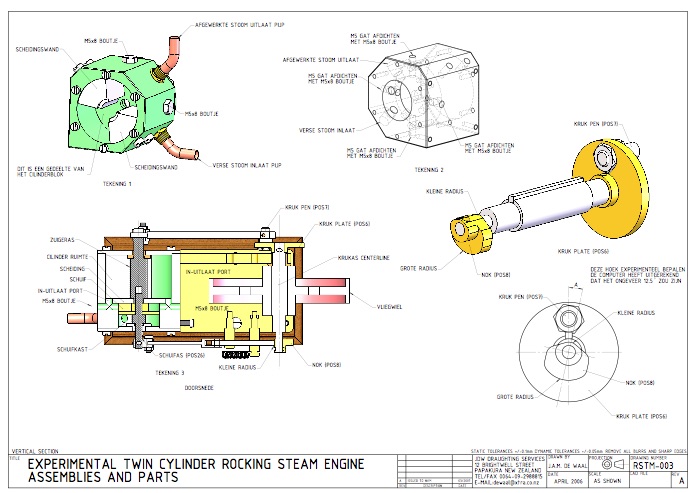

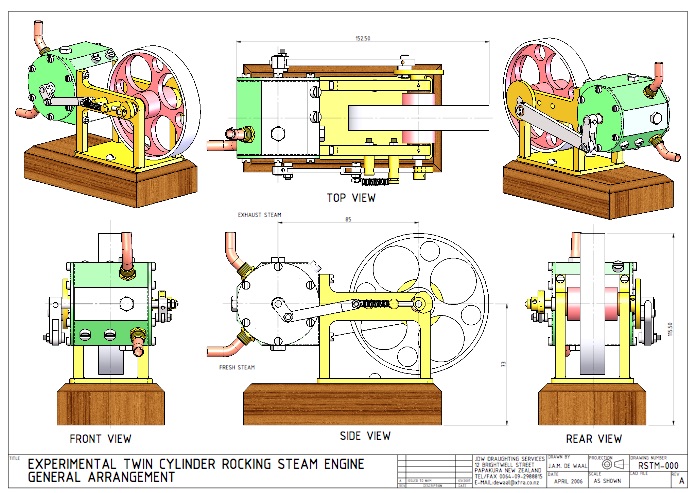

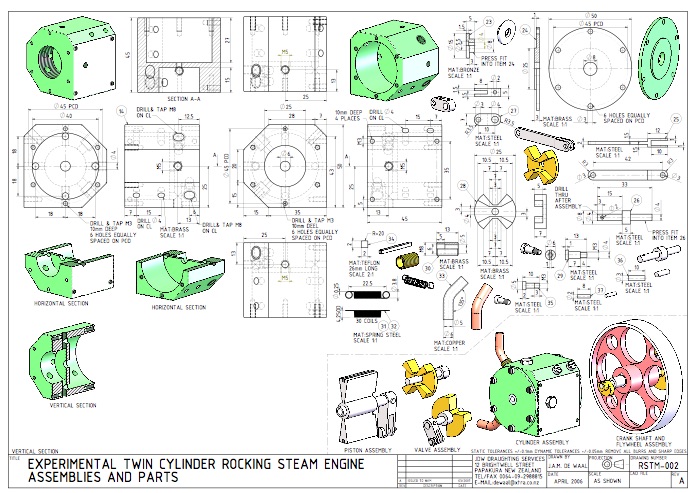

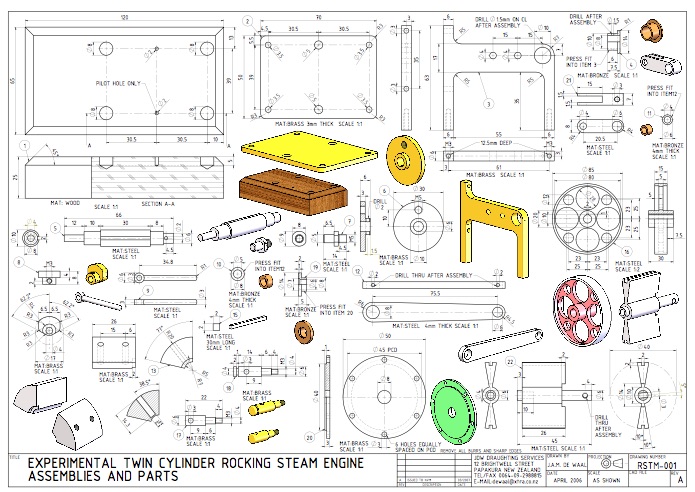

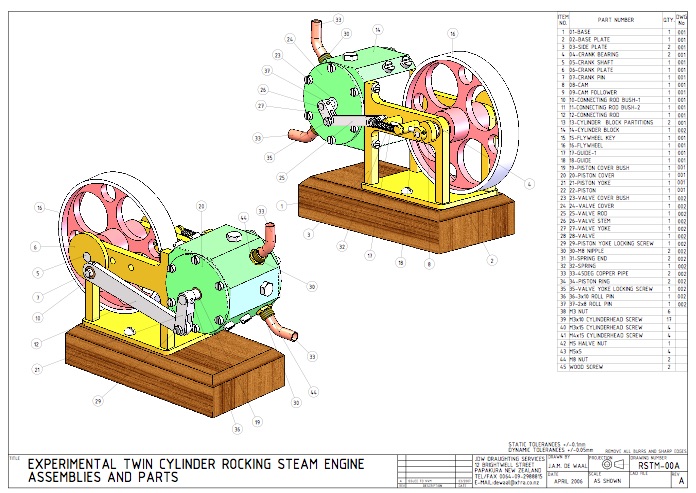

Julius’ drawings for an experimental twin-cylinder rocking steam engine.


Click on drawings to download.

For personal use only.


Although drawings reproduce well on this website, they are even better as saved downloads.


Please let the editor know if you are building one of these or other engines to Julius’ designs.
