JESSOP & APPLEBY MOBILE STEAM CRANE
Part one by Julius de Waal

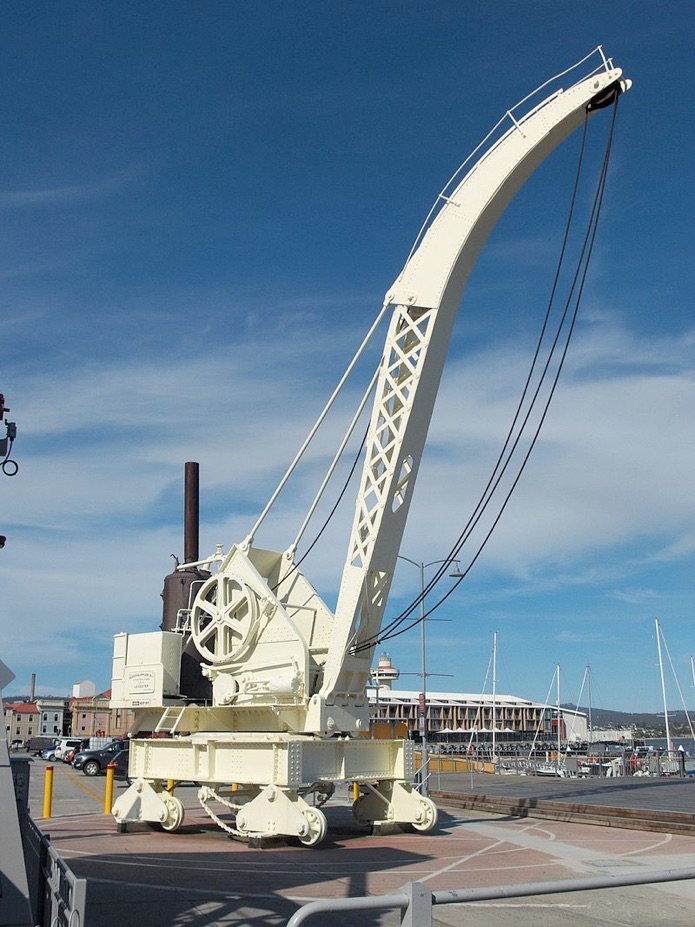

Julius completed this major design project thanks to a request to produce a set of drawings from Tony Sprent in Hobart, Tasmania where the original is located. Tony is now cracking on with the model build and we hope to keep MEWS readers updated.
Part one here part two part three part four part five

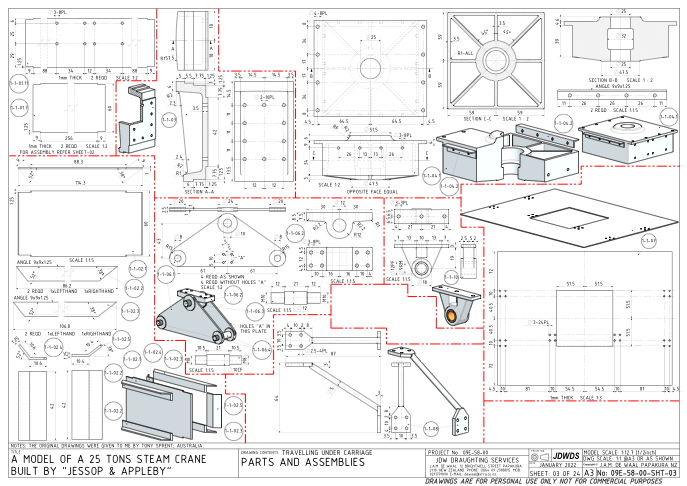

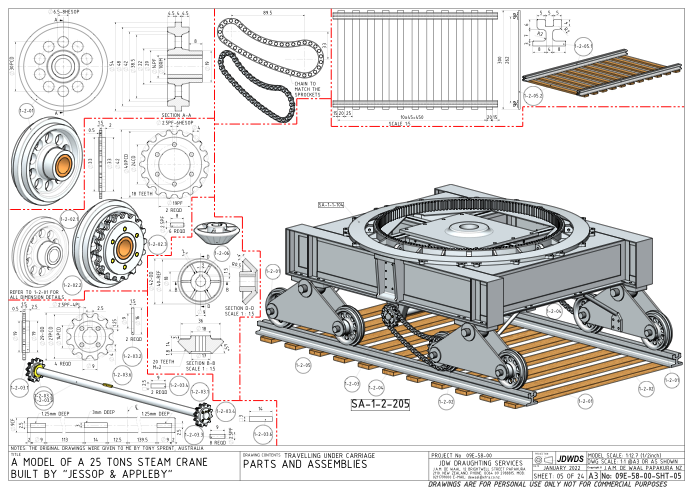

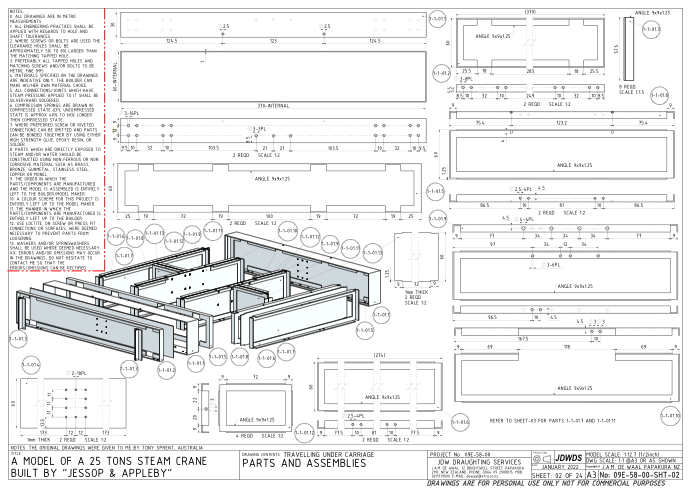

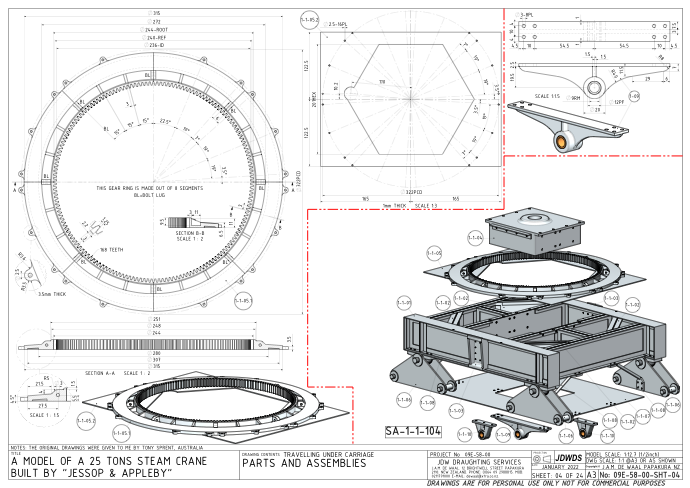

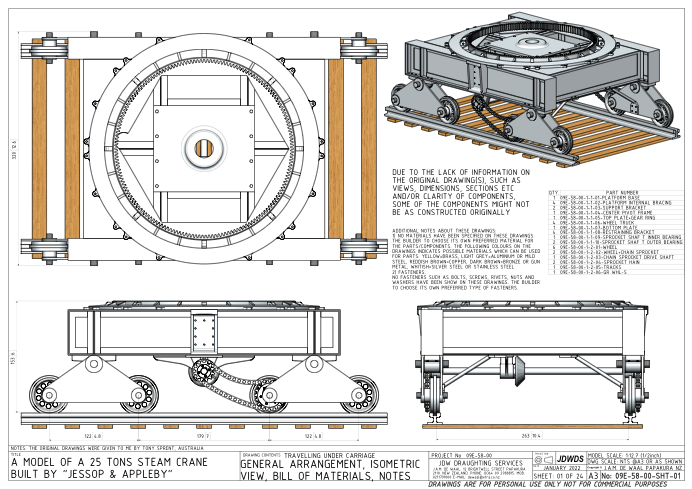

Click on drawings to download.
For personal use only.
Before starting work on a boiler, always check the design etc with a boiler inspector.
Although drawings reproduce well on this website, they are even better as useable saved downloads.
Please let the editor know if you are building one of these or other engines to Julius’ designs.
