JESSOP & APPLEBY MOBILE STEAM CRANE

Part four by Julius de Waal

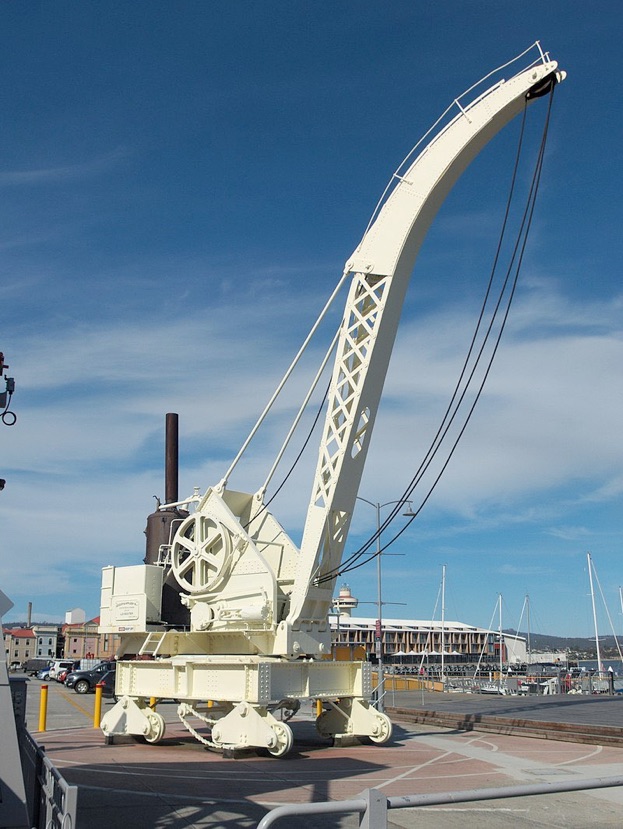

Julius completed this major design project thanks to a request to produce a set of drawings from Tony Sprent in Hobart, Tasmania where the original is located.

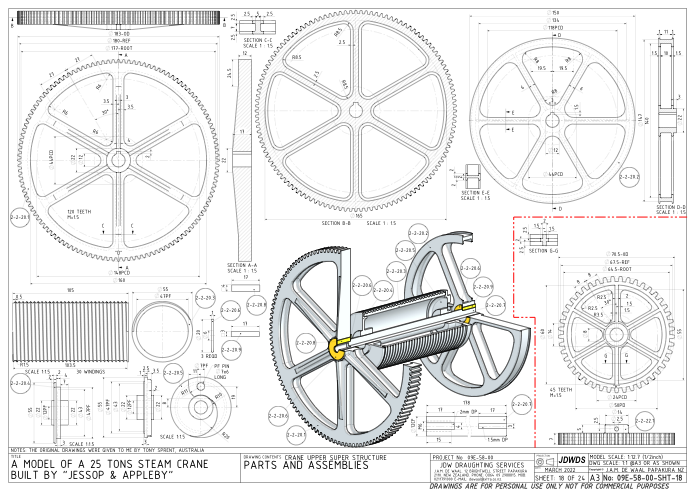

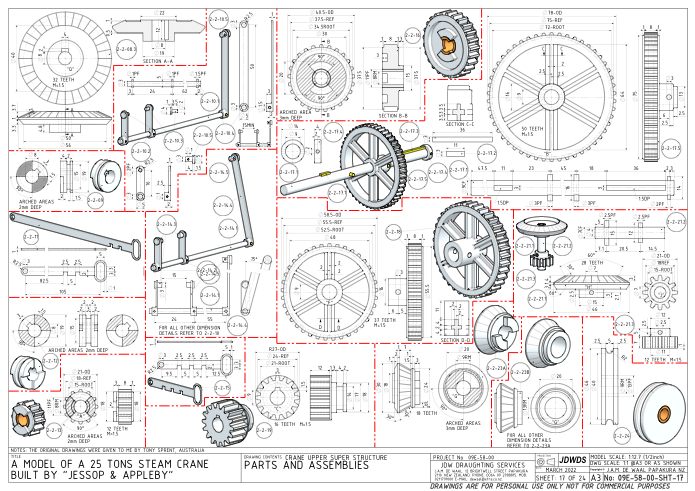

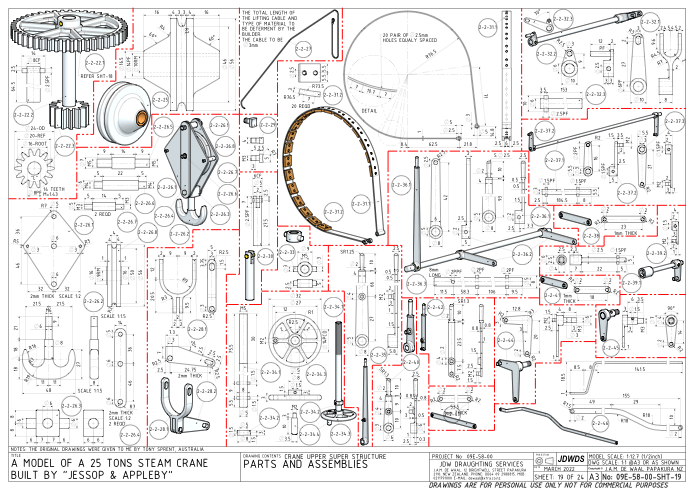

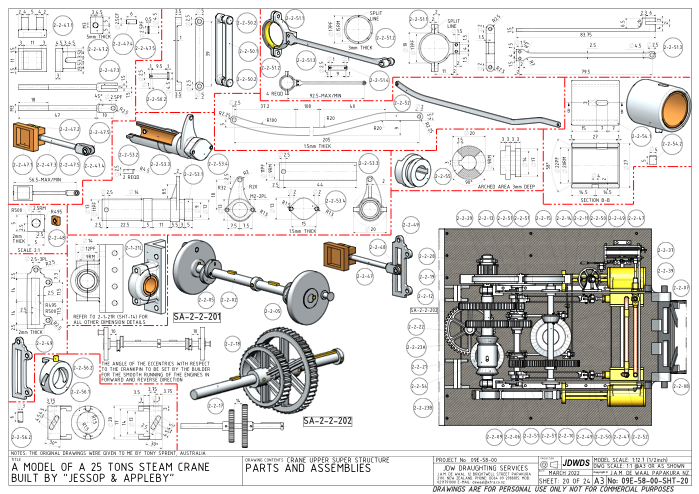

Click on drawings to download.

For personal use only.


Part one here   part two  part three  part four  part five


Before starting work on a boiler, always check the design etc with a boiler inspector.


Although drawings reproduce well on this website, they are even better as useable saved downloads.


Please let the editor know if you are building one of these or other engines to Julius’ designs.
