CURLY’S SIMPLE

LMS CLASS 4F LOCO

PART 1/2 by Julius de Waal

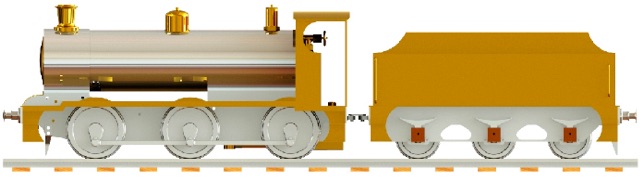

Julius revisits in metric Curly’s design for a simple LMS class 4F locomotive. He described it as a “toy” but a “powerful and realistic one”. He added: “There is, of course, no obligation to stick to the outline of the LMS 4F engine; the ‘top works’ can be made to represent any locomotive having this wheel arrangement. Also sizes of wheels and other parts can be varied to suit materials in hand.”

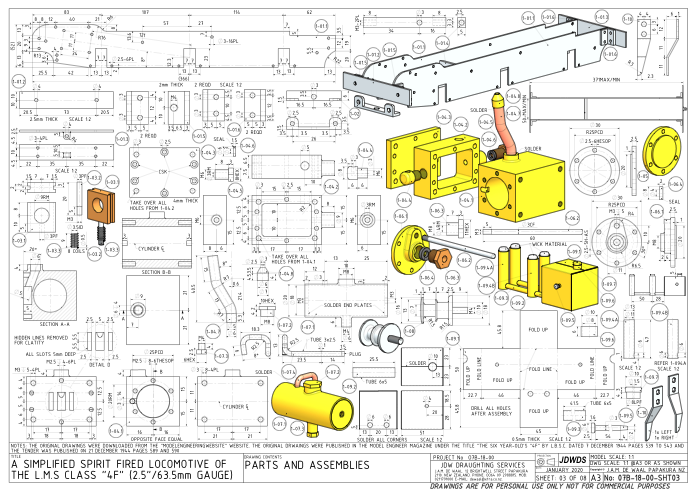

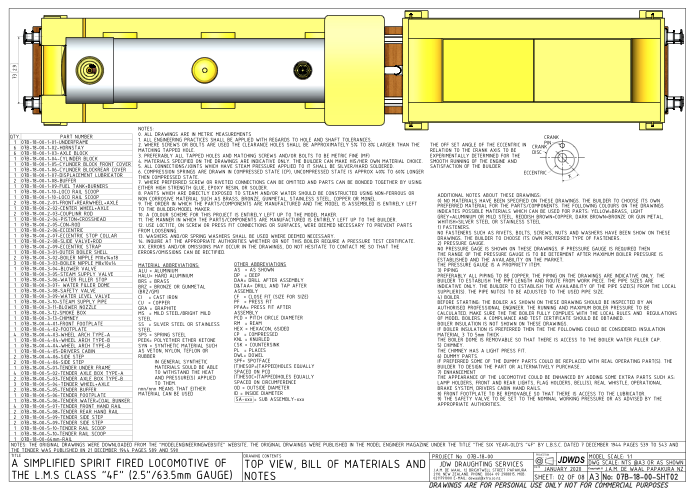

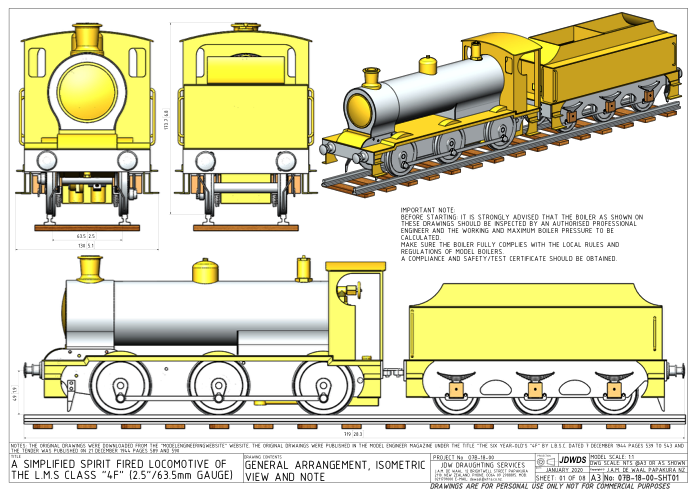

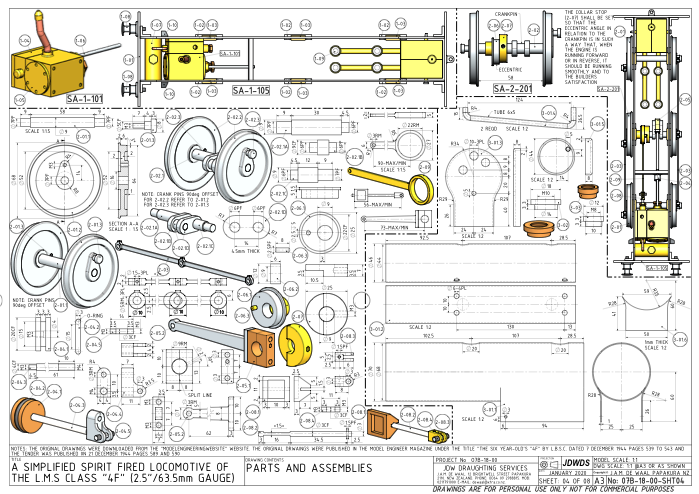

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
