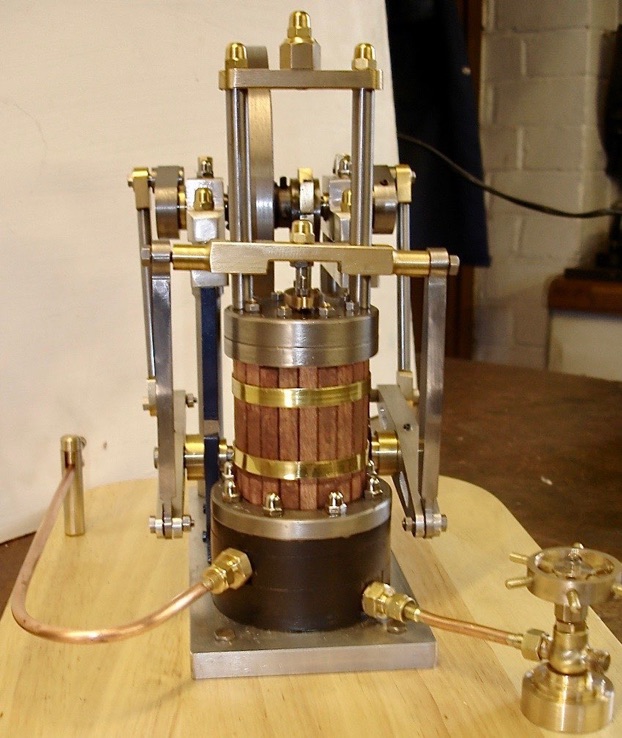

TRUNCH TROJAN

BEAM ENGINE

Part three by Bob Middleton

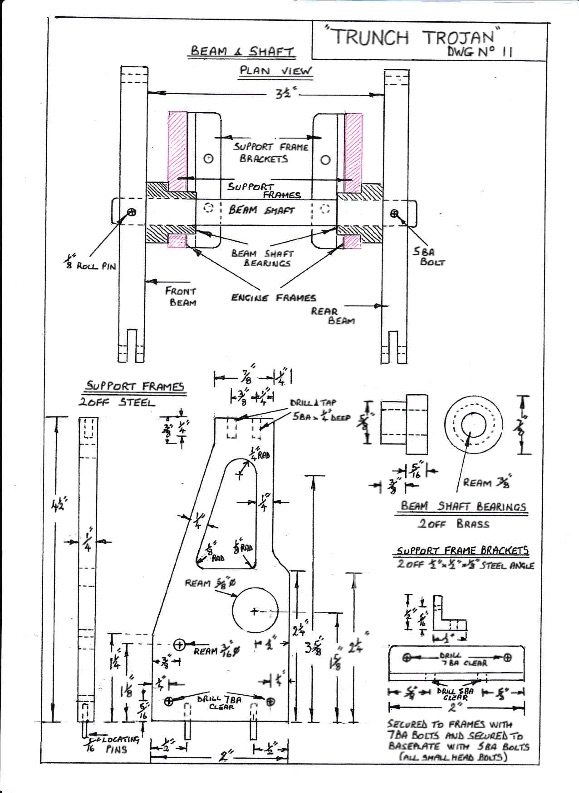

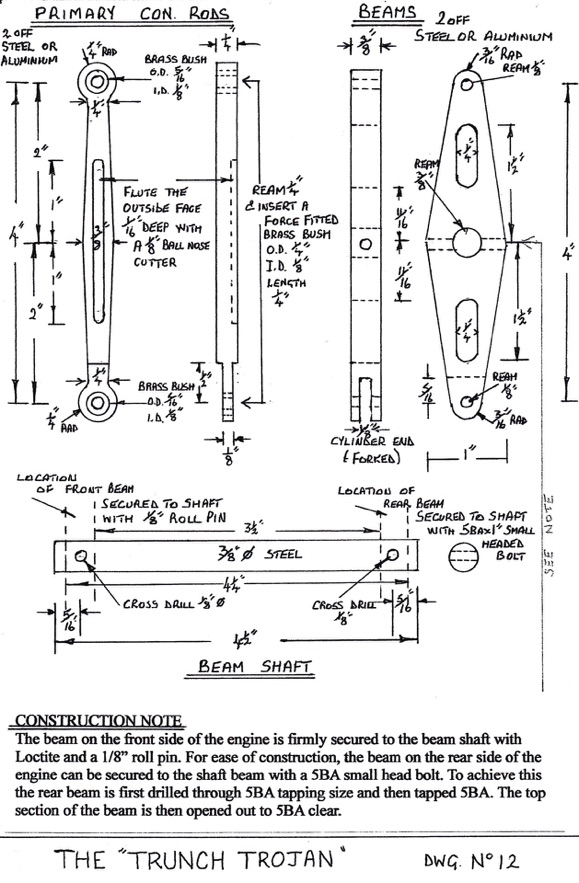

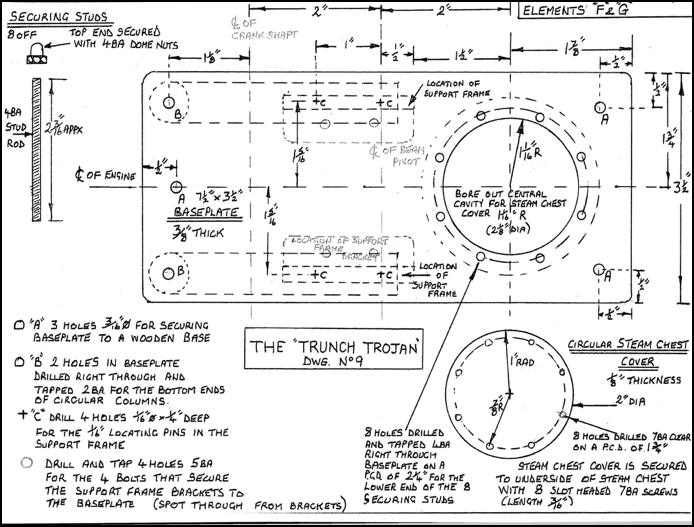

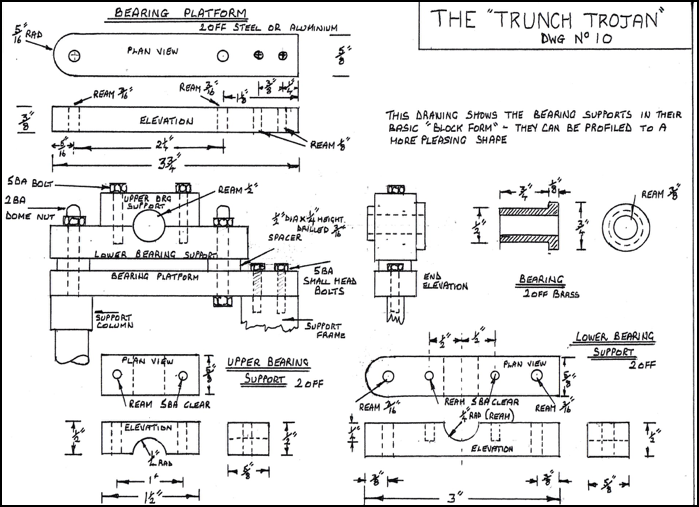

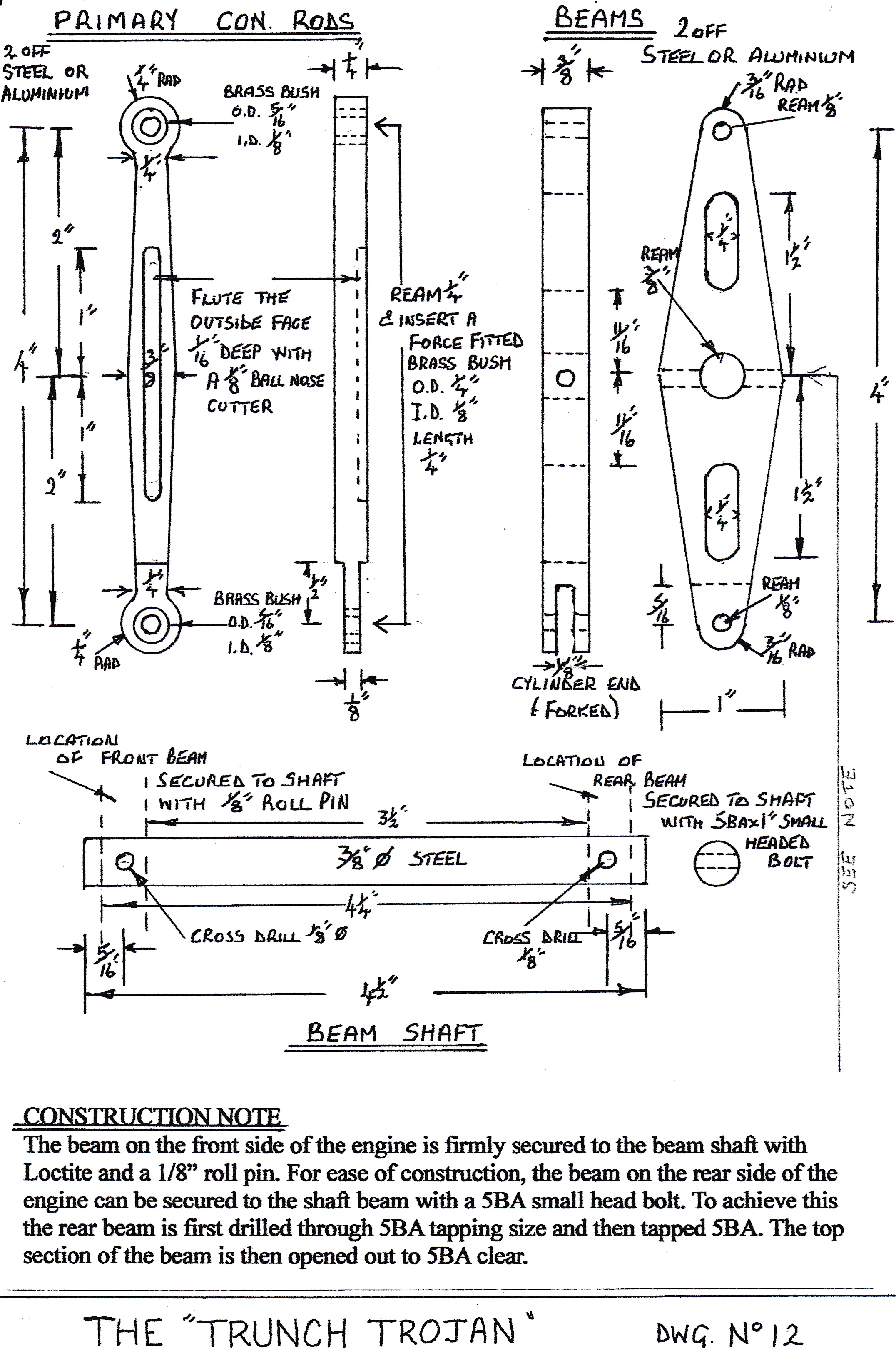

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.
