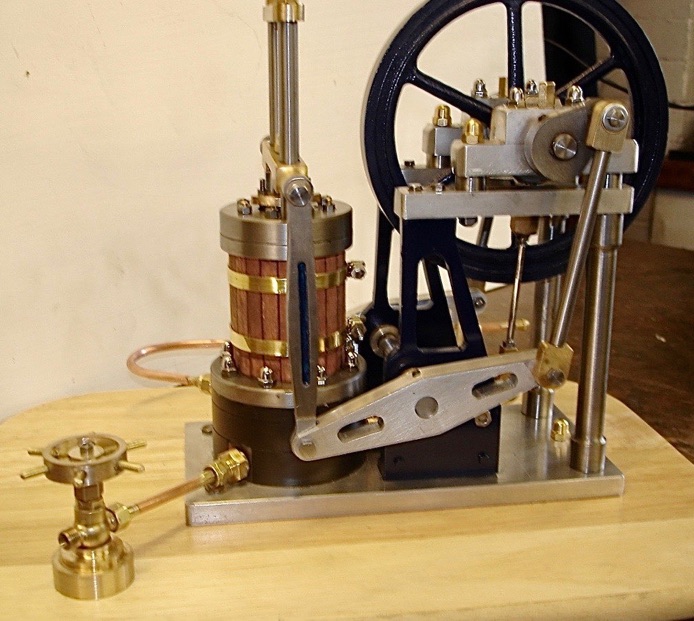

TRUNCH TROJAN

BEAM ENGINE

Part four by Bob Middleton

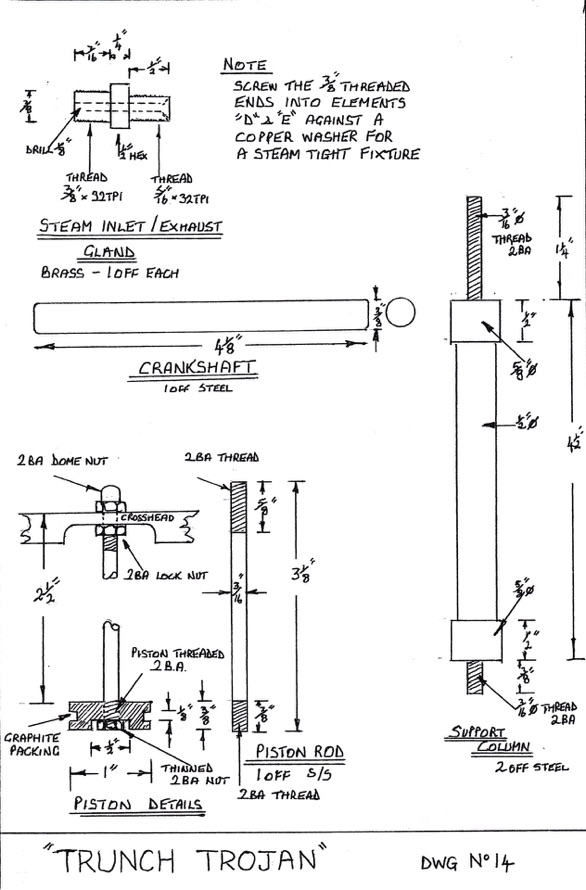

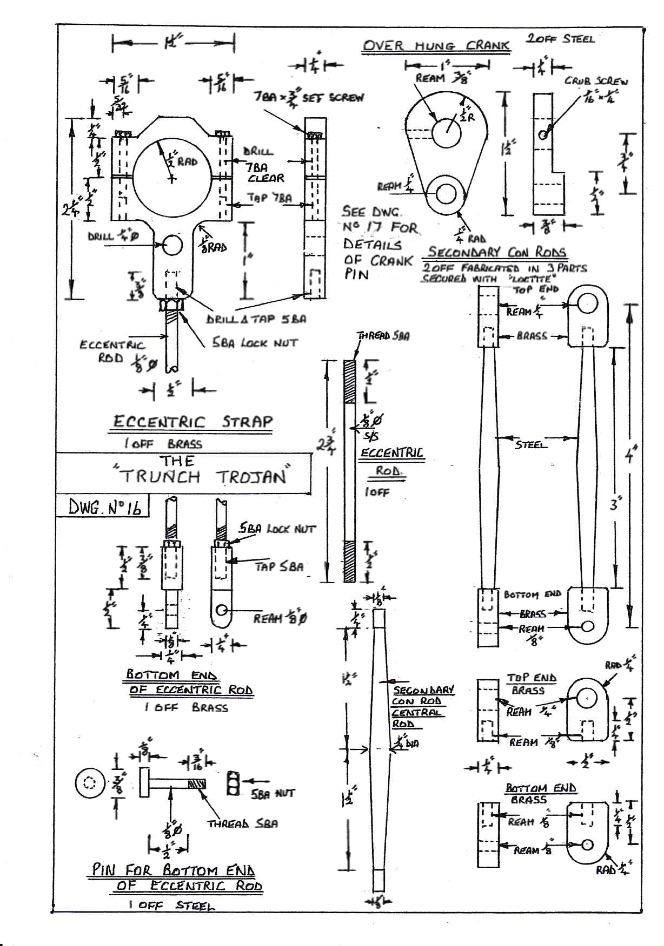

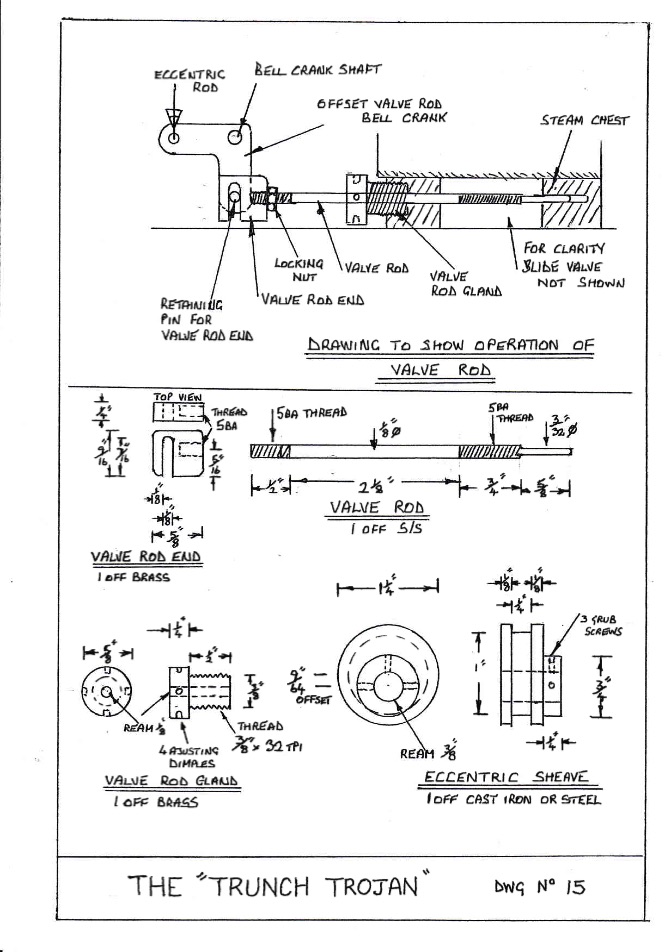

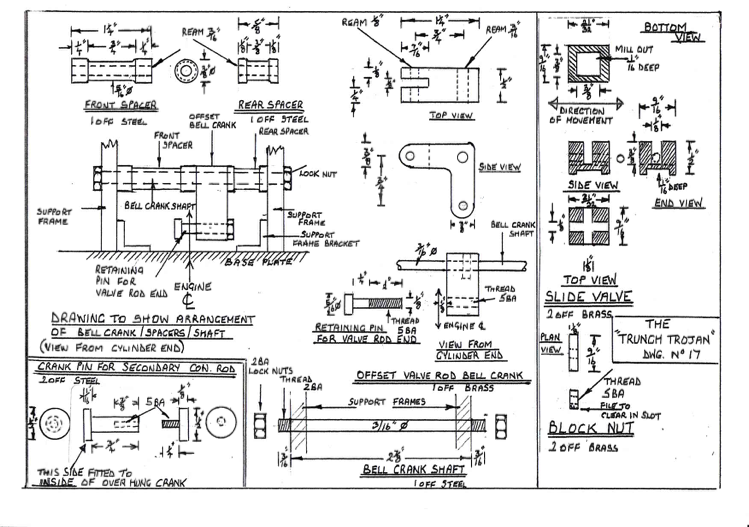

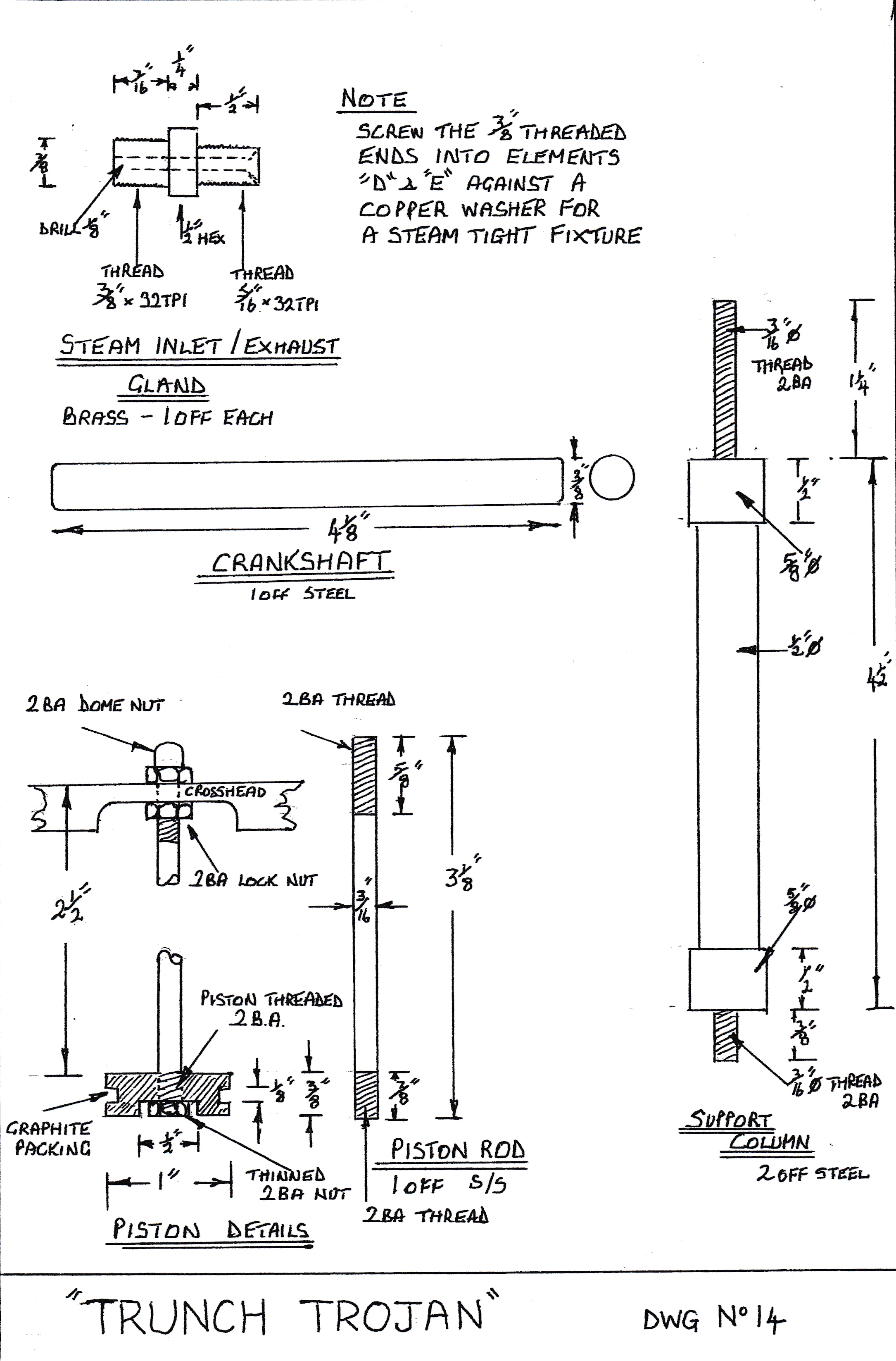

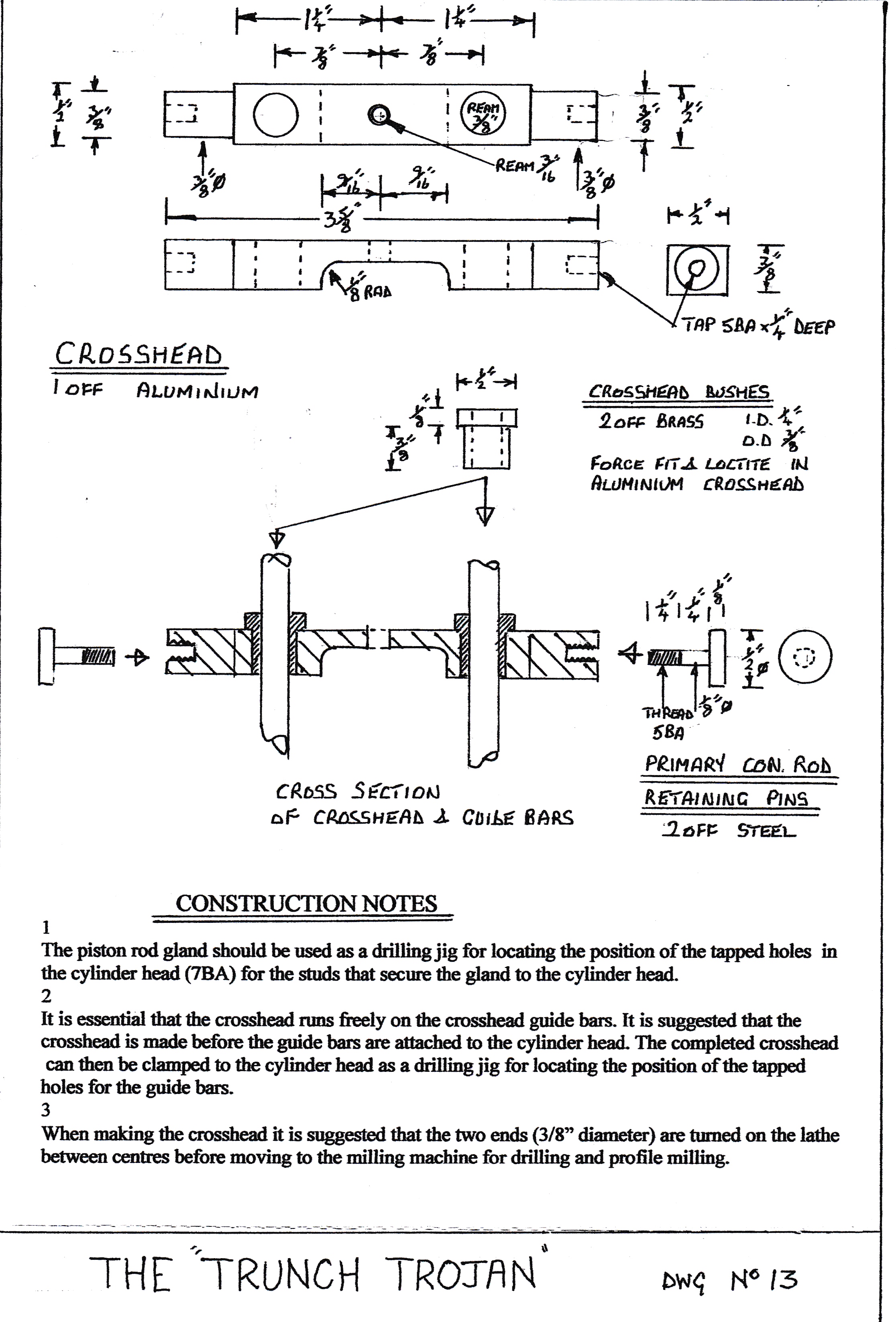

Click on drawings to download. For personal use only.

Although drawings reproduce well on this website, they are even better as saved downloads.

Part one here  Part two  Part three
