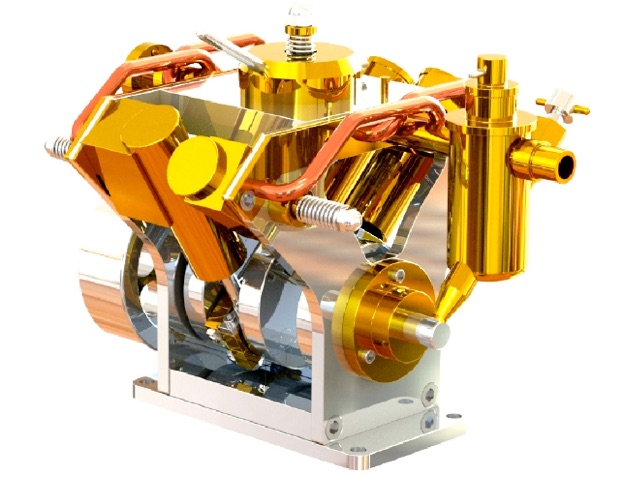

V-4 OSCILLATING
STEAM ENGINE
By Julius de Waal

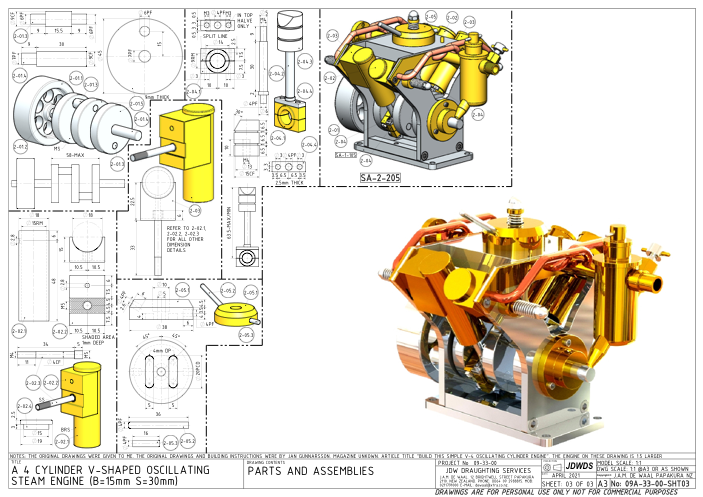

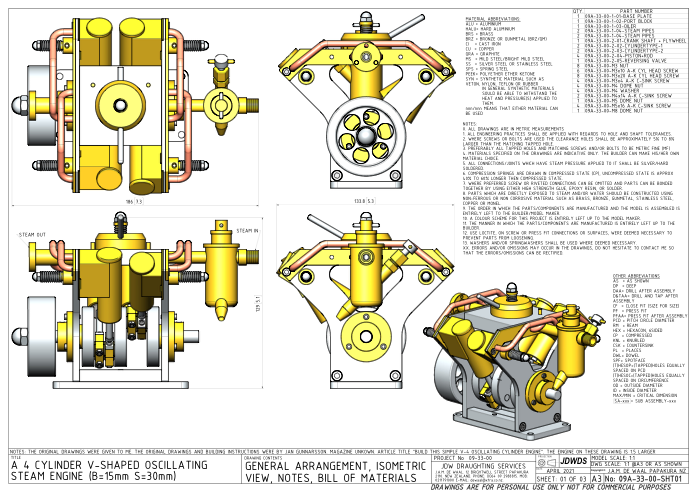

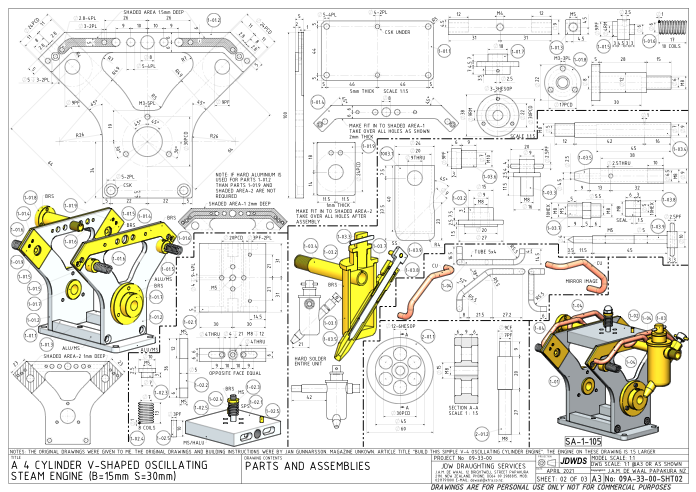

Julius’ drawings for a four-cylinder V-form steam engine for fabricated construction.
Click on drawings to download.
For personal use only.
Although drawings reproduce well on this website, they are even better as saved downloads.
Please let the editor know if you are building one of these or other engines to Julius’ designs.
